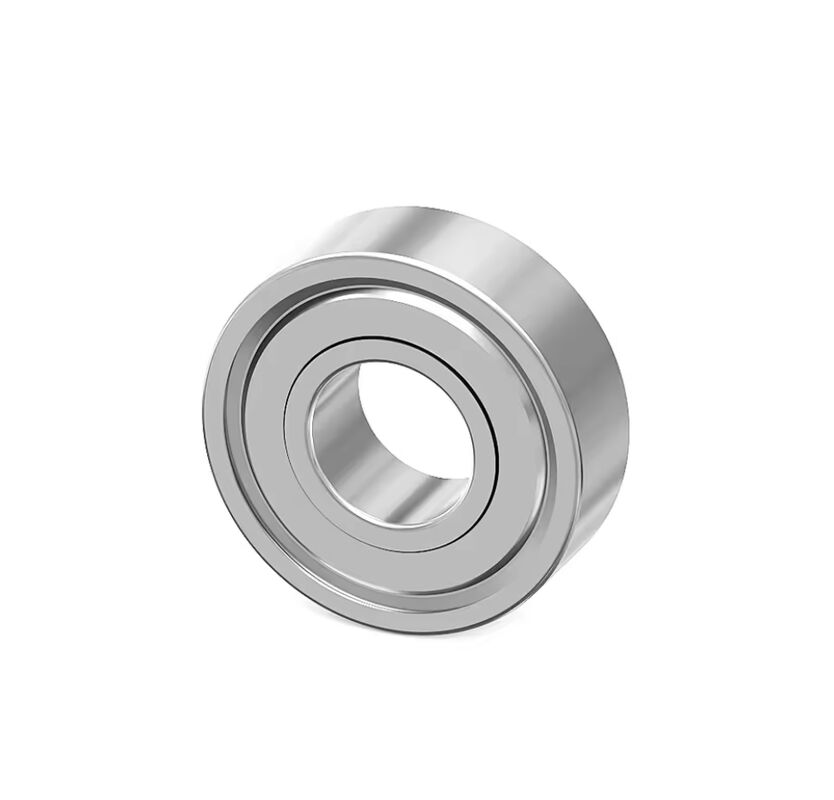

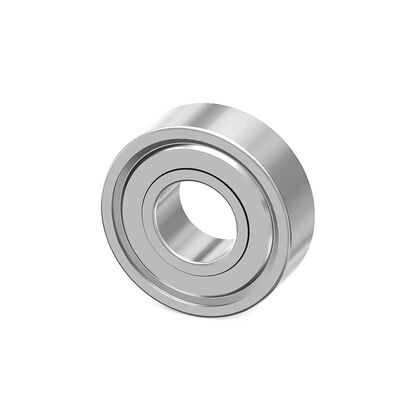

F684 Flange Silent High Speed Miniature Bearings 9mm Outer Diameter

Engineered for applications demanding extreme miniaturization without sacrificing performance, the F684 Flange Bearing stands as a pinnacle of precision engineering. This ultra miniature bearing exemplifies the fusion of compact design, high-speed capability, and exceptional quiet operation, making it an indispensable component for cutting-edge technology requiring reliability in confined spaces. As a member of the extra-miniature flange bearing category, the F684 is specifically designed to provide secure mounting and radial load support where every millimeter counts.

Unparalleled Versatility Across Industries The F684 ultra miniature bearing finds critical application in a vast array of demanding global sectors:

• Micro-Motors & Precision Drives: Essential for high-speed spindle motors in dental handpieces, miniature DC motors in consumer electronics (cameras, smartphones), and intricate robotics joints, enabling smooth, efficient power transmission.
• Medical & Laboratory Equipment: Vital in sensitive devices like surgical tools, diagnostic scanners (small rotating components), and analytical instrumentation, where silent operation and contamination resistance are paramount.
• Advanced Optics & Instrumentation: Used in lens focusing mechanisms, laser scanning galvos, and miniature encoders, supporting ultra-precise movement and alignment.
• Aerospace & Defense Avionics: Trusted in guidance systems, sensor gimbals, and UAV components where size, weight, and reliability under demanding conditions are critical.
• Office Automation & Consumer Tech: Powers miniature fans, printer rollers, and high-speed data storage devices, contributing to quieter, more efficient products.

Precision Defined: F684 Flange Bearing Specifications

Note: Flange dimensions (Df, T) and exact load/speed ratings may vary slightly by manufacturer. Consult specific datasheets for precise values.

Why Choose the F684 Ultra Miniature Flange Bearing?

1. Supreme Miniaturization: Its exceptionally compact dimensions (4x6x2mm core) make it a true ultra miniature bearing, enabling design innovations in space-constrained applications impossible with larger bearings.
2. Exceptional High-Speed Performance: Precision manufacturing and high-quality materials allow the F684 to operate effectively at very high rotational speeds (up to approx. 85,000 rpm with oil), crucial for demanding micro-motors and turbo applications.
3. Silent & Smooth Operation: Optimized internal geometry and stringent quality control ensure remarkably low noise and vibration levels, meeting the "silent bearing" requirement for sensitive medical and audio-visual equipment.
4. Secure Flange Mounting: The integrated flange simplifies installation and provides robust axial location, preventing slippage and ensuring precise positioning within assemblies – a key benefit over non-flanged miniature bearings.
5. Global Reliability: Manufactured to exacting international standards using high-grade steel and advanced lubrication options, the F684 delivers consistent, long-lasting performance across diverse operating environments worldwide.

The Ultimate Solution for Micro-Precision

The F684 Flange Bearing is more than just a component; it's a gateway to unlocking innovation in micro-engineering. Its status as a premier ultra miniature bearing combined with high-speed capability, whisper-quiet operation, and reliable flange mounting makes it the go-to solution for designers and engineers pushing the boundaries of miniaturization and performance. Whether in life-saving medical devices, high-performance consumer tech, or cutting-edge aerospace systems, the F684 delivers the precision and reliability demanded by the world's most advanced global markets. Trust this exceptional ultra miniature bearing to keep your most compact, critical applications running smoothly and efficiently.

F684 Flange bearing F684 Extra-miniature bearings, extra-miniature flange bearings, high-speed bearings, silent bearings
